ROV Battery Pack Optimization

ROV Battery Pack Optimization#

The task in this tutorial is to find the optimal configuration of N battery cells in a battery pack that powers an ROV. Optimal in this case means the lowest power consumption for a set of defined use cases.

from sysloss.components import *
from sysloss.system import System
import pandas as pd
import matplotlib.pyplot as plt

System definition#

The ROV consists of the following parts and modules:

  • LED light, dimmable, 24V 1.32A (max)

  • Camera, 12V, 0.3A

  • Sonar, 24V, 7W

  • 6x 12V thrusters (two upwards, four tilting), 8A max current each

  • Control and comms module, 5V, 0.5W

  • Battery pack

Three voltage converters are used to convert the battery pack voltage to 5V, 12V and 24V respectively.

The ROV has space for 24 rechargeable lithium battery cells. The nominal battery voltage is 3.7V. A fully charged battery can be 4.2V and the battery voltage cutoff is 3.0V. Each cell has a capacity of 5Ah. To prolong battery life, the discharge current from each cell should not exceed 1C.
Let’s start by defining the battery parameter constants:

BATT_NOM = 3.7 # Volt
BATT_MAX = 4.2 # Volt
BATT_MIN = 3.0 # Volt
BATT_CAP = 5.0 # Ah
BATT_RC = 20e-3 # connection resistance (Ohm)

The battery pack will be organized as nPmS, where n i the number of batteries in parallel and m is the number of batteries in series:

The bus bar (nickel strip) resistance is ignored for simplicity. The connection resistance, Rc, is 20mOhm. And the battery internal resistance, Rs, is set to 50mOhm initially. The total pack resistance is then:
$\( R_{pack}=\frac{(2R_{c}+R_{s})m}{n}\ \)$

During ROV operation the camera and the control/communications module are always on. The other modules are utilized according to the following use cases:

  • Roam: Thrusters at 50%, sonar is off, LED light is 30%

  • Scan: Thrusters at 25%, sonar is on, LED light is 50%

  • Inspect: Thrusters at 33%, sonar is off, LED light is 100%

Average percentage of time spent per use case during ROV operation is:

  • Roam: 25%

  • Scan: 60%

  • Inspect: 15%

Define the system load phases that represent the use cases. For duration, we define a 10min interval as the total time for the three phases:

Tip

Load phase duration is used for both calculation of time-weighted average of total system power and during battery depletion in battery life estimation. In the former case the sum of phase times does not impact the calculation, but in the latter case the sum of phase times should be scaled such that each phase will be analyzed multiple times during battery depletion.

rov_phases = {"roam": 150, "scan": 360, "inspect": 90}

Next, we define the efficiency curves for the DC/DC converters:

Hide code cell source


bb_24v_eff = {"vi":[5.0, 12.0, 24.0, 48.0],
              "io":[0.01, 0.05, 0.1, 0.2, 0.5, 1.0, 2.0, 3.0, 5.0],
              "eff":[[0.2, 0.55, 0.71, 0.825, 0.91, 0.93, 0.94, 0.93, 0.9],
                     [0.12, 0.4, 0.57, 0.72, 0.85, 0.91, 0.93, 0.94, 0.945],
                     [0.1, 0.35, 0.52, 0.68, 0.84, 0.9, 0.925, 0.94, 0.95],
                     [0.08, 0.17, 0.3, 0.45, 0.67, 0.78, 0.85, 0.88, 0.89]]}

bb_12v_eff = {"vi":[6.0, 12.0, 24.0, 36.0, 60.0],
              "io":[0.1, 10., 20., 30., 40., 50.],
              "eff":[[0.86, 0.94, 0.955, 0.96, 0.95, 0.94],
                     [0.84, 0.93, 0.95, 0.955, 0.955, 0.94],
                     [0.82, 0.92, 0.94, 0.945, 0.95, 0.95],
                     [0.78, 0.88, 0.925, 0.935, 0.94, 0.94],
                     [0.7, 0.84, 0.87, 0.91, 0.92, 0.925]]}

buck_5v_eff = {"vi":[6.0, 12.0, 24.0, 48.0],
               "io":[0.01, 0.02, 0.04, 0.06, 0.08, 0.1, 0.12],
               "eff":[[0.25, 0.85, 0.92, 0.93, 0.94, 0.95, 0.95],
                      [0.1, 0.82, 0.89, 0.91, 0.92, 00.93, 0.92],
                      [0.07, 0.69, 0.8, 0.84, 0.87, 0.88, 0.89],
                      [0.05, 0.5, 0.66, 0.74, 0.78, 0.81, 0.82]]}

Finally, we create a function that sets up the ROV system. The parameters to this function are:

  • n: number of cells in parallel

  • m: number f cells in series

  • rc: cell connection resistance

  • rs: cell internal resistance

  • cv: cell voltage

  • cc: cell capacity

Tip

Add a value for the thermal resistance parameter (rt) on components that should be monitored for temperature rise. Combine this with a limit on temperature rise (tr) to get warnings if components get too hot.

def create_rov(n, m, rc, rs, cv, cc, phases):
    """ROV system creation"""
    rpack = m*(2*rc+rs)/n
    vpack = m*cv
    sys = System("ROV", source=Source("BattPack", vo=vpack, rs=rpack, limits={"io":[0, cc*n]}))
    sys.set_sys_phases(phases)
    sys.add_comp("BattPack", comp=Converter("Buck-boost 24V", vo=21.6, eff=bb_24v_eff, rt=0.8,
                                            limits={"vi":[3.5, 55.0], "io":[0.0, 5.0], "pl":[0.0, 6.0], "tr":[0.0, 15.0]}))
    sys.add_comp("Buck-boost 24V", comp=ILoad("Light", ii=1.32))
    sys.set_comp_phases("Light", phase_conf={"roam": 0.396, "scan": 0.66, "inspect":1.32})
    sys.add_comp("Buck-boost 24V", comp=PLoad("Sonar", pwr=7.0))
    sys.set_comp_phases("Sonar", phase_conf={"scan": 7.0})
    sys.add_comp("BattPack", comp=Converter("Buck-boost 12V", vo=12.0, eff=bb_12v_eff, rt=1.5,
                                            limits={"vi":[6., 60.], "io":[0.0, 50.0], "pl":[0.0, 40.0], "tr":[0.0, 40.0]}))
    sys.add_comp("Buck-boost 12V", comp=ILoad("Thrusters", ii=15.0))
    sys.set_comp_phases("Thrusters", phase_conf={"roam": 24.0, "scan": 12.0, "inspect":15.84})
    sys.add_comp("Buck-boost 12V", comp=ILoad("Camera", ii=0.3))
    sys.add_comp("BattPack", comp=Converter("Buck 5V", vo=5.0, eff=buck_5v_eff, limits={"vi":[3., 65.], "io":[0.0, 0.12], "pl":[0.0, 1.2]}))
    sys.add_comp("Buck 5V", comp=PLoad("Control", pwr=0.5))
    return sys

Parameter check#

Tip

It is always a good idea to check the system creation function and system parameters before starting system analysis.

Let’s create a test system and use sysLoss built-in review methods:

rov = create_rov(6, 4, BATT_RC, 50e-3, BATT_NOM, BATT_CAP, rov_phases)
rov.tree()

ROV
└── BattPack
    ├── Buck 5V
    │   └── Control
    ├── Buck-boost 12V
    │   ├── Camera
    │   └── Thrusters
    └── Buck-boost 24V
        ├── Sonar
        └── Light

rov.phases()
Component Type Active phase rs (Ohm) ii (A) pwr (W)
0 BattPack SOURCE N/A
1 Buck 5V CONVERTER N/A
2 Control LOAD N/A 0.5
3 Buck-boost 12V CONVERTER N/A
4 Camera LOAD N/A 0.3
5 Thrusters LOAD roam 24.0
6 Thrusters LOAD scan 12.0
7 Thrusters LOAD inspect 15.84
8 Buck-boost 24V CONVERTER N/A
9 Sonar LOAD scan 7.0
10 Light LOAD roam 0.396
11 Light LOAD scan 0.66
12 Light LOAD inspect 1.32

Parameter check:

rov.params()
Component Type vo (V) vdrop (V) rs (Ohm) rt (°C/W) eff (%) ig (A) iq (A) ii (A) iis (A) pwr (W) pwrs (W) loss
0 BattPack SOURCE 14.8 0.06 0.0
1 Buck 5V CONVERTER 5.0 0.0 interp 0.0 0.0
2 Control LOAD 0.0 0.5 0.0 False
3 Buck-boost 12V CONVERTER 12.0 1.5 interp 0.0 0.0
4 Camera LOAD 0.0 0.3 0.0 False
5 Thrusters LOAD 0.0 15.0 0.0 False
6 Buck-boost 24V CONVERTER 21.6 0.8 interp 0.0 0.0
7 Sonar LOAD 0.0 7.0 0.0 False
8 Light LOAD 0.0 1.32 0.0 False

Limits check:

rov.limits()
Component Type vi  (V) vo  (V) vd  (V) ii  (A) io  (A) pi  (W) po  (W) pl  (W) tr  (°C) tp  (°C)
0 BattPack SOURCE [0, 30.0]
1 Buck 5V CONVERTER [3.0, 65.0] [0.0, 0.12] [0.0, 1.2]
2 Control LOAD
3 Buck-boost 12V CONVERTER [6.0, 60.0] [0.0, 50.0] [0.0, 40.0] [0.0, 40.0]
4 Camera LOAD
5 Thrusters LOAD
6 Buck-boost 24V CONVERTER [3.5, 55.0] [0.0, 5.0] [0.0, 6.0] [0.0, 15.0]
7 Sonar LOAD
8 Light LOAD

The converter efficiency curves are important, and we can easily plot these:

Tip

The color map for 2D and 3D plots can be changed using the cmap parameter.

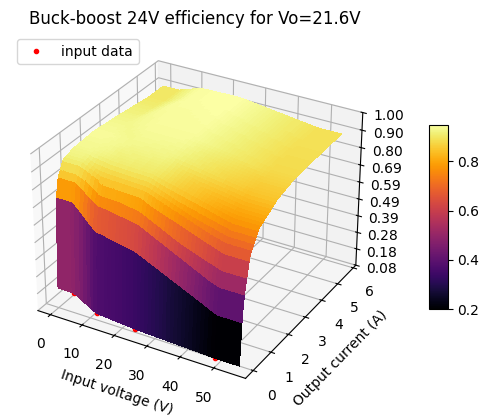

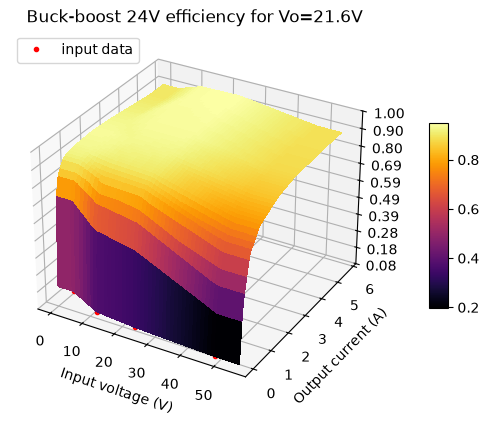

rov.plot_interp("Buck-boost 24V", plot3d=True, cmap="inferno");
../_images/9c07e8fa3e201ec58d293cecb38e8cdbca24eaec1c87b1c982ee397657d7e846.png

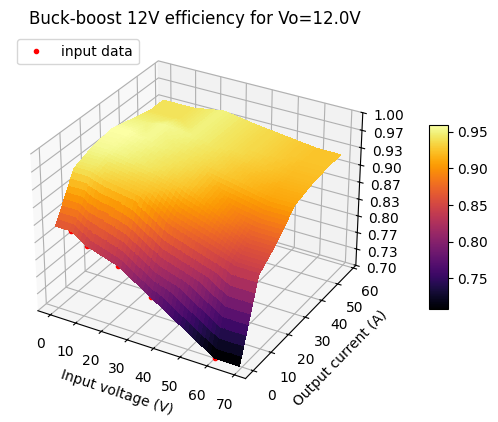

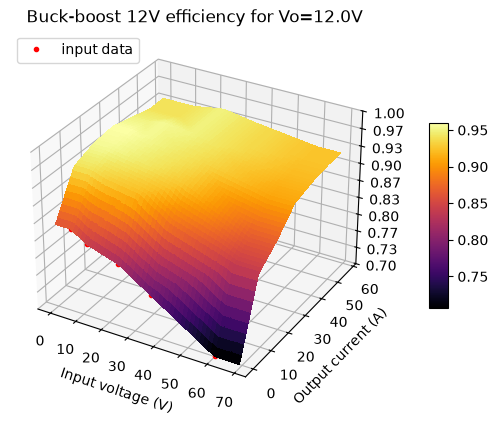

rov.plot_interp("Buck-boost 12V", plot3d=True, cmap="inferno");
../_images/97eb04c7eece4e5ca012bdacbc3b0b44536d968eb0515cc890921fc68103271f.png

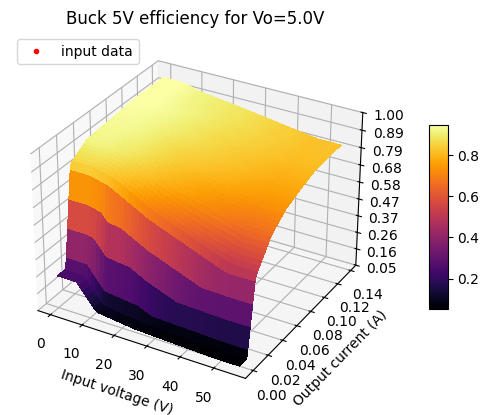

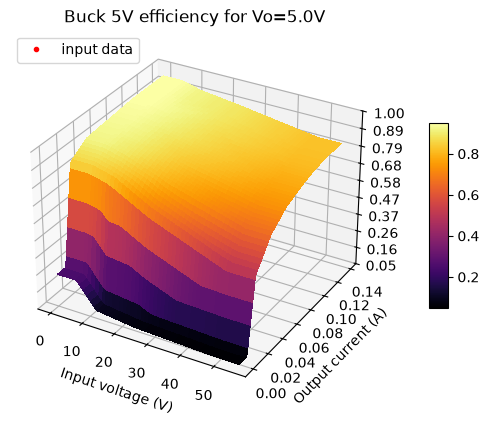

rov.plot_interp("Buck 5V", plot3d=True, cmap="inferno");
../_images/d02dc27f5c338f6f19bb3df0f1317861db5f550124dd3c56009218914b263e9f.png

All looks good, so we can start with system analysis.

Analysis#

We will analyze all possible battery pack configurations except all batteries in parallel and all in series. The battery voltage of rechargeable lithium batteries varies quite a lot from fully charged state to almost depleted state. Thus, we also run analysis with minimum, nominal and maximum battery voltage.

battery_configs = {"12x2": [12, 2], "8x3": [8, 3], "6x4": [6, 4], "4x6": [4,6], "3x8": [3,8], "2x12" :[2,12]}
battery_state = {"max":BATT_MAX, "nom":BATT_NOM, "min":BATT_MIN}
res = []
for bc in list(battery_configs.keys()):
    for bs in list(battery_state.keys()):
        conf = battery_configs[bc]
        bstate = battery_state[bs]
        rov = create_rov(conf[0], conf[1], BATT_RC, 50e-3, bstate, BATT_CAP, rov_phases)
        res += [rov.solve(tags={"Pack":bc, "Voltage":bs+": "+str(round(bstate*conf[1],1))})]
df = pd.concat(res, ignore_index=True)

Let’s look at ROV average power consumption as a function of battery pack configuration (nominal battery voltage):

Hide code cell source

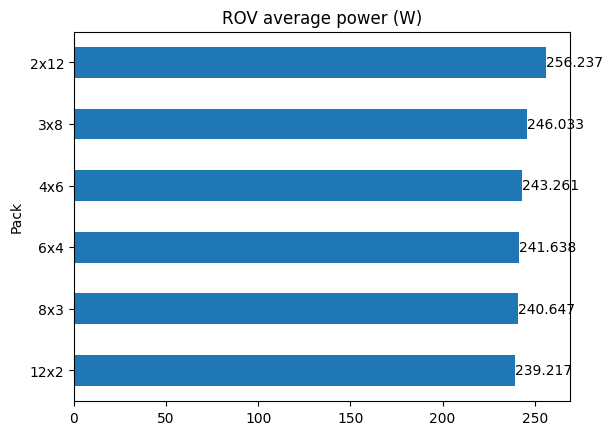

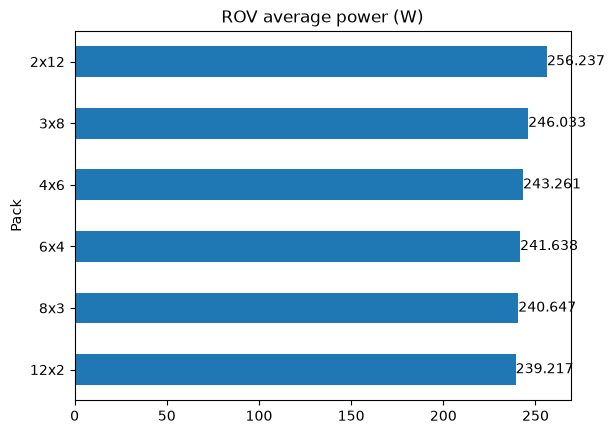

ax = df[(df.Component == "System average") & (df.Voltage.str.startswith("nom"))].plot.barh(x="Pack", y="Power (W)", legend=False, title="ROV average power (W)")
ax.bar_label(ax.containers[0]);
../_images/bfa7278dc48afe822011c3417d649750b2b45f9b1d4466bb1696aceccdf85950.png

According to the results above, the lower battery pack voltages result in the lowest energy consumption. Let’s take a closer look at the results:

Hide code cell source


df[(df.Component == "System average") & (df.Voltage.str.startswith("nom"))][["Component", "Phase", "Pack", "Voltage", "Iout (A)", "Power (W)", "Loss (W)", "Efficiency (%)"]].style.hide(axis='index')
Component Phase Pack Voltage Iout (A) Power (W) Loss (W) Efficiency (%)
System average 12x2 nom: 7.4 32.326685 239.217466 29.036697 88.186986
System average 8x3 nom: 11.1 21.679953 240.647474 30.466705 87.632961
System average 6x4 nom: 14.8 16.326884 241.637890 31.457122 87.280612
System average 4x6 nom: 22.2 10.957709 243.261129 33.080361 86.697295
System average 3x8 nom: 29.6 8.311939 246.033384 35.852617 85.662015
System average 2x12 nom: 44.4 5.771106 256.237115 46.056338 82.061593

But before taking a decision on the battery pack configuration, we should check for warnings. Warnings occur whenever limits we defined for some of the components are exceeded:

Hide code cell source


cols = df.columns.to_list()
cols.remove("Type")
cols.remove("Parent")
df[(df.Warnings != "") & (df.Type != "")][cols].style.hide(axis='index')
Component Pack Voltage Phase Vin (V) Vout (V) Iin (A) Iout (A) Power (W) Loss (W) Efficiency (%) Temp. rise (°C) Peak temp. (°C) Warnings
BattPack 12x2 min: 6.0 roam 6.000000 5.067966 62.135618 62.135618 372.813706 57.912525 84.466096 io
Buck-boost 12V 12x2 min: 6.0 roam 5.067966 12.000000 60.113753 24.300000 304.654443 13.054443 95.715000 19.581664 44.581664 vi
Buck-boost 12V 12x2 min: 6.0 scan 5.510241 12.000000 28.392056 12.300000 156.447083 8.847083 94.345000 13.270624 38.270624 vi
Buck-boost 12V 12x2 min: 6.0 inspect 5.339428 12.000000 38.214460 16.140000 204.043362 10.363362 94.921000 15.545044 40.545044 vi
BattPack 8x3 min: 9.0 roam 9.000000 7.598284 41.532312 41.532312 373.790806 58.216486 84.425383 io
BattPack 6x4 min: 12.0 roam 12.000000 10.123928 31.267871 31.267871 375.214457 58.660787 84.366064 io
BattPack 4x6 min: 18.0 roam 18.000000 15.166674 20.987600 20.987600 377.776792 59.464710 84.259300 io
BattPack 3x8 min: 24.0 roam 24.000000 20.201132 15.828618 15.828618 379.886822 60.130832 84.171382 io
Buck-boost 12V 2x12 max: 50.4 roam 46.486737 12.000000 6.929172 24.300000 322.114594 30.514594 90.526789 45.771890 70.771890 tr
Buck-boost 24V 2x12 max: 50.4 scan 48.185106 21.600000 0.568106 0.984074 27.374245 6.118245 77.649630 4.894596 29.894596 pl
Buck-boost 24V 2x12 max: 50.4 inspect 47.508096 21.600000 0.746514 1.320000 35.465457 6.953457 80.393720 5.562765 30.562765 pl
Buck-boost 24V 2x12 nom: 44.4 inspect 41.107834 21.600000 0.841799 1.320000 34.604545 6.092545 82.393802 4.874036 29.874036 pl
BattPack 2x12 min: 36.0 roam 36.000000 30.213950 10.714907 10.714907 385.736658 61.996987 83.927639 io

The warnings column in the table above is interpreted as follows:

  • vi on the Buck-boost 12V converter means that the input voltage is too low for the converter. This occurs when the battery cells are almost depleted.

  • io on the BattPack means that the current drawn from battery cells exceed the desired max current of 1C

  • pl on the Buck-boost 24V converter means that the power dissipation in this converter is too high (the limit is 6W)

  • tr on the Buck-boost 12V means that the temperature rise is too high (the limit is 40°C)

System engineering is all about compromises, so all these warnings could probably be mitigated in one way or the other. All configurations have a warning on io on the battery pack current, which exceeds 1C, but not with a large factor. In this case we decided to go for the 8x3 battery pack configuration. It has the second lowest energy consumption, and the maximum cell current is 5.19A in the roaming phase.

Battery life estimation#

The next task is to estimate battery life with the 8x3 battery pack. We will use a PyBaMM model as described previously in the Battery Life Simulation tutorial. Start by installing PyBaMM.

%pip install pybamm -q
import pybamm

First, let’s calculate the battery life with an ideal battery of capacity 40Ah and nominal voltage 11.1V:

float(40 * 60 / df[(df.Component == "System average") & (df.Voltage == "nom: 11.1")]["Iout (A)"].values[0])

110.70134879136235

110.7 minutes is almost 2 hours.

Next, we define the callback functions we need to interface with the PyBaMM model. We will simulate a single battery cell, and scale this to the 8x3 configuration, assuming all cells are identical.

# initialize PyBaMM model
model = pybamm.lithium_ion.DFN()
parameter_values = pybamm.ParameterValues("Chen2020") # 5Ah model
parameter_values.update({"Current function [A]": "[input]"})
sim = pybamm.Simulation(model, parameter_values=parameter_values)
sim.step(1e-6, inputs={"Current function [A]":0.0}) # dummy step to initialize variables

def probe_pb():
    """Battery probe callback function"""
    sol = sim.solution
    cap = parameter_values["Nominal cell capacity [A.h]"]
    rs = 3 * (2 * BATT_RC + sol["Local ECM resistance [Ohm]"].entries[-1]) / 8 # 8x3 pack
    return (max(cap - sol["Discharge capacity [A.h]"].entries[-1], 0.0) * 24,
            sol["Voltage [V]"].entries[-1] * 3,
            rs)

def deplete_pb(t, curr):
    """Battery depletion callback function"""
    sim.step(t, solver=pybamm.CasadiSolver(mode="safe"), inputs={"Current function [A]":curr / 8})
    return probe_pb()

rov =  create_rov(8, 3, 20e-3, 50e-3, BATT_NOM, BATT_CAP, rov_phases)
bldf = rov.batt_life("BattPack", cutoff=7.51, pfunc=probe_pb, dfunc=deplete_pb)

With the PyBaMM model, the battery life is:

float(bldf["Time (s)"].values[-1] / 60)

102.5

102.5 minutes. Let’s look at the battery pack voltage as a function of time:

Hide code cell source

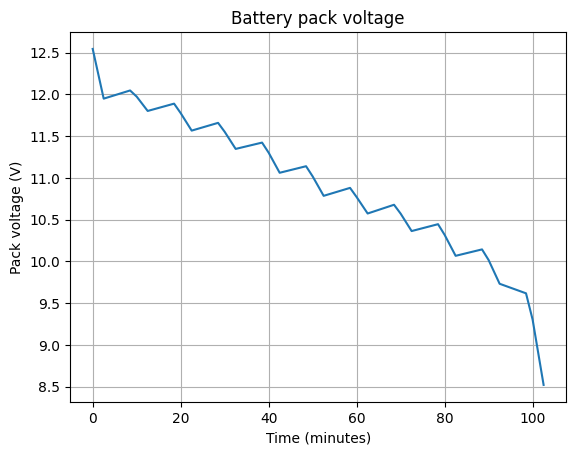

plt.plot(bldf["Time (s)"]/60, bldf["Voltage (V)"])
plt.title("Battery pack voltage")
plt.xlabel("Time (minutes)")
plt.ylabel("Pack voltage (V)")
plt.grid();
../_images/81fd363740cf1d2725ed6216766c130f06810398ffdb1477e27f095e9f7e443e.png

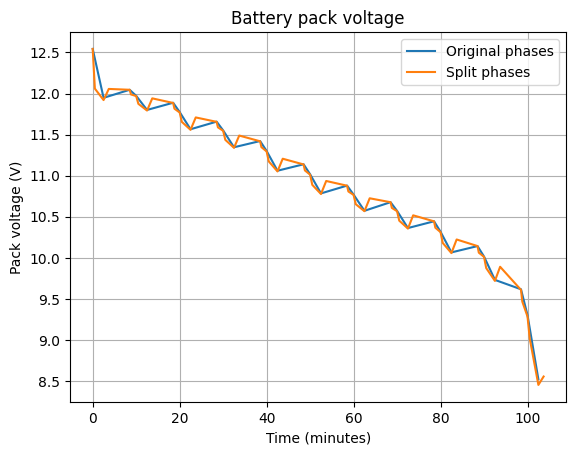

A general challenge with synchronizing two models (system model and PyBaMM battery model) is how often the two models should be synchronized with each other. With the current definition of load phases, the next phase is analyzed with the battery voltage at the end of the previous phase. This is not correct, as the battery voltage changes during each phase. One way to increase accuracy is to split each phase in two, e.g. 20:80%. The battery voltage will then “settle” the first 20% of the interval allow the remainer 80% to be analyzed with a more accurate cell voltage. Let’s see how much impact this will have on the battery life estimation:

SPLIT = 0.2
rov_phases2 = {"roam1": 150*SPLIT, "roam2": 150*(1-SPLIT),
              "scan1": 360*SPLIT, "scan2": 360*(1-SPLIT),
              "inspect1": 90*SPLIT, "inspect2": 90*(1-SPLIT)}
rov.set_sys_phases(rov_phases2)
rov.set_comp_phases("Light", phase_conf={"roam1": 0.396, "roam2": 0.396, "scan1": 0.66, "scan2": 0.66, "inspect1":1.32, "inspect2":1.32})
rov.set_comp_phases("Sonar", phase_conf={"scan1": 7.0, "scan2": 7.0})
rov.set_comp_phases("Thrusters", phase_conf={"roam1": 24.0, "roam2": 24.0, "scan1": 12.0, "scan2": 12.0, "inspect1":15.84, "inspect2":15.84})

model = pybamm.lithium_ion.DFN()
sim = pybamm.Simulation(model, parameter_values=parameter_values)
sim.step(1e-6, inputs={"Current function [A]":0.0}) # dummy step to initialize variables
bldf2 = rov.batt_life("BattPack", cutoff=7.51, pfunc=probe_pb, dfunc=deplete_pb)

float(bldf2["Time (s)"].values[-1] / 60)

103.7

The battery life increased by 1.2 minutes - a very small change. Compare voltage curves for the two battery depletions:

Hide code cell source


plt.plot(bldf["Time (s)"]/60, bldf["Voltage (V)"], label = "Original phases")
plt.plot(bldf2["Time (s)"]/60, bldf2["Voltage (V)"], label="Split phases")
plt.title("Battery pack voltage")
plt.xlabel("Time (minutes)")
plt.ylabel("Pack voltage (V)")
plt.legend()
plt.grid();
../_images/966e0687c407df5c0f3bddddc0381e1bc63e288018708176d1c597f493b031b8.png

Summary#

This tutorial demonstrates how sysLoss can be used to find the optimal battery pack configuration when a set of system use cases are given. It also demonstrates how to estimate battery life with PyBaMM battery models.
