Component parameter files

Component parameters can be loaded from file (.toml format) rather than specifiying them in code when building a system. This enables a component library to be created from .toml files. This notebook demonstrates the component parameter files for each of the component types in sysLoss.

Import packages:

from sysloss.components import *
from sysloss.system import System
import toml

About the .toml format

The general format of a component parameter file consists of two tables:

• [<component type>]

  • component specific parameters

• [limits] (optional)

  • limits for input and output voltages, currents, power, loss and temperature

sysLoss will silently ignore surplus parameters in the .toml file. Parameter files for each of the component types are detailed below.

Tip

TOML is picky on array values - a mix of integer and floating point values are not allowed. Always use floats!

Limit definitions

The following limits are supported:

• “vi”: Input voltage (V)

• “vo”: Output voltage (V)

• “vd”: Voltage difference, vi - vo (V)

• “ii”: Input current (A)

• “io”: Output current (A)

• “pi”: Input power (W)

• “po”: Output power (W)

• “pl”: Power loss (W)

• “tr”: Temperature rise (°C)

• “tp”: Peak temperature (°C)

Some components only support a subset of the limits.

Source

source_params = """[source]
vo = -5    # output voltage (V), mandatory
rs = 0.007 # series resistance (Ohm), optional

[limits] # optional, any combination of below parameters can be specificed
io = [ 0.0, 1.0]
po = [ 0.0, 1000000.0]
pl = [ 0.0, 1000000.0]
"""

with open("source.toml", "w") as f:
    f.write(source_params)

sys = System("Test toml", Source.from_file("V5N", fname="source.toml"))
sys.add_source(Source("5V", vo=5.0))

Rectifier

The Rectifier component can either model a diode bridge or MOSFET bridge depending of the value of the parameter vdrop. Example of both types are shown below.

dbridge_params= """[rectifier]
#vdrop = 0.35 # diode (each) voltage drop (V), optional
# voltage drop can optionally be specified as 1D interpolation data:
[rectifier.vdrop]
vi = [3.3]
io = [0.1, 0.5, 0.9]
vdrop = [[0.23, 0.41, 0.477]]
# or as 2D interpolation data:
#[rectifier.vdrop]
#vi = [3.3, 5.0, 12.0]
#io = [0.1, 0.5, 0.9]
#vdrop = [[0.23, 0.34, 0.477], [0.27, 0.39, 0.51], [0.3, 0.41, 0.57]]

[limits] # optional, any combination of below parameters can be specificed
vi = [ 0.0, 1000000.0]
vo = [ 0.0, 1000000.0]
vd = [ 0.0, 1000000.0]
ii = [ 0.0, 1000000.0]
io = [ 0.0, 1000000.0]
pi = [ 0.0, 1000000.0]
po = [ 0.0, 1000000.0]
pl = [ 0.0, 1000000.0]
tr = [ 0.0, 1000000.0]
tp = [ -1000000.0, 1000000.0]
"""

with open("dbridge.toml", "w") as f:
    f.write(dbridge_params)

sys.add_comp("V5N", comp=Rectifier.from_file("D-bridge", fname="dbridge.toml"))

mbridge_params= """[rectifier]
vdrop = 0.0   # diode (each) voltage drop (V), optional
rs = 0.012    # MOSFET (each) resistance (Ohm), optional
#ig=1.2e-5    # ground current (A), optional
# ground current (ig) can optionally be specified as 1D interpolation data:
[rectifier.ig]
vi = [3.3]
io = [0.1, 0.5, 0.9]
ig = [[0.55e-5, 0.78e-5, 0.92e-5]]
# or as 2D interpolation data:
#[rectifier.ig]
#vi = [1.9, 5.8, 12.5]
#io = [0.002, 0.02, 0.2]
#ig = [[3.0e-6, 3.0e-6, 4.0e-6], [9.0e-6, 9.0e-6, 99.0e-6], [56.0e-6, 67.0e-6, 77.0e-6]]
iq = 1.2e-6   # quiescent (no-load) current (A), optional
rt = 6.77     # thermal resistance (°C/W), optional

[limits] # optional, any combination of below parameters can be specificed
vi = [ 0.0, 1000000.0]
vo = [ 0.0, 1000000.0]
vd = [ 0.0, 1000000.0]
ii = [ 0.0, 1000000.0]
io = [ 0.0, 1000000.0]
pi = [ 0.0, 1000000.0]
po = [ 0.0, 1000000.0]
pl = [ 0.0, 1000000.0]
tr = [ 0.0, 1000000.0]
tp = [ -1000000.0, 1000000.0]
"""

with open("mbridge.toml", "w") as f:
    f.write(mbridge_params)

sys.add_comp("5V", comp=Rectifier.from_file("M-bridge", fname="mbridge.toml"))

PMux

pmux_params = """[pmux]
rs = [0.33, 0.42, 0.15] # series resistance (Ohm), optional
iis = 0.57e-6           # sleep (shut-down) current (A), optional
rt = 5.3                # thermal resistance (°C/W), optional
#ig=1.2e-5              # ground current (A), optional
# ground current (ig) can optionally be specified as 1D interpolation data:
#[pmux.ig]
#vi = [3.3]
#io = [0.1, 0.5, 0.9]
#ig = [[0.55e-5, 0.78e-5, 0.92e-5]]
# or as 2D interpolation data:
[pmux.ig]
vi = [1.9, 5.8, 12.5]
io = [0.002, 0.02, 0.2]
ig = [[3.0e-6, 3.0e-6, 4.0e-6], [9.0e-6, 9.0e-6, 99.0e-6], [56.0e-6, 67.0e-6, 77.0e-6]]

[limits] # optional, any combination of below parameters can be specificed
vi = [ 0.0, 16.0,]
vo = [ 0.0, 1000000.0,]
vd = [ 0.0, 1000000.0,]
ii = [ 0.0, 1000000.0,]
io = [ 0.0, 2.0]
pi = [ 0.0, 1000000.0]
po = [ 0.0, 1000000.0]
pl = [ 0.0, 1000000.0]
tr = [ 0.0, 1000000.0]
tp = [ 0.0, 100.0]
"""

with open("pmux.toml", "w") as f:
    f.write(pmux_params)

sys.add_comp(["D-bridge", "M-bridge"], comp=PMux.from_file("Pmux", fname="pmux.toml"), rail="Vsys")

Converter

conv_params = """[converter]
vo = 2.5      # output voltage (V), mandatory
iq = 1.2e-6   # quiescent (no-load) current (A), optional
iis = 0.33e-6 # sleep (shut-down) current (A), optional
rt = 25.0     # thermal resistance (°C/W), optional
#eff = 0.87   # efficiency, mandatory
# efficiency can optionally be specified as 1D interpolation data:
#[converter.eff]
#vi = [3.3]
#io = [0.1, 0.5, 0.9]
#eff = [[0.55, 0.78, 0.92]]
# or as 2D interpolation data:
[converter.eff]
vi = [3.3, 5.0, 12.0]
io = [0.1, 0.5, 0.9]
eff = [[0.55, 0.78, 0.92], [0.5, 0.74, 0.83], [0.4, 0.6, 0.766]]

[limits] # optional, any combination of below parameters can be specificed
vi = [ 2.7, 16.0]
vo = [ 0.0, 1000000.0]
ii = [ 0.0, 1000000.0]
io = [ 0.0, 1.0]
pi = [ 0.0, 1000000.0]
po = [ 0.0, 1000000.0]
pl = [ 0.0, 1.0]
tr = [ 0.0, 12.5]
tp = [-40.0, 125.0]
"""

with open("converter.toml", "w") as f:
    f.write(conv_params)

sys.add_comp("Vsys", comp=Converter.from_file("Buck 2.5V", fname="converter.toml"))

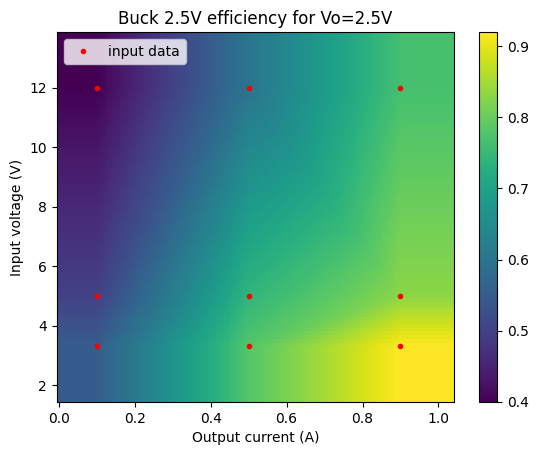

sys.plot_interp("Buck 2.5V");

LinReg

ldo_params = """[linreg]
vo = 1.8      # output voltage (V), mandatory
vdrop = 0.25  # dropout voltage (V), optional
iis = 0.33e-6 # sleep (shut-down) current (A), optional
rt = 20.0     # thermal resistance (°C/W), optional
#ig = 1.2e-6  # ground current (A), optional
# ground current (ig) can optionally be specified as 1D interpolation data:
#[linreg.ig]
#vi = [5.0]
#io = [0.0, 0.05, 0.1]
#ig = [[2.0e-6, 0.5e-3, 0.85e-3]]
# or as 2D interpolation data:
[linreg.ig]
vi = [2.5, 5.0]
io = [0.0, 0.05, 0.1]
ig = [[1.2e-6, 0.34e-3, 0.64e-3], [2.0e-6, 0.5e-3, 0.85e-3]]

[limits] # optional, any combination of below parameters can be specificed
vi = [ 2.7, 24.0]
vo = [ 0.0, 1000000.0]
vd = [ 0.3, 100.0]
ii = [ 0.0, 1000000.0]
io = [ 0.0, 0.25]
pi = [ 0.0, 1000000.0]
po = [ 0.0, 1000000.0]
pl = [ 0.0, 0.3]
tr = [ 0.0, 5.75]
tp = [-40.0, 85.0]
"""

with open("linreg.toml", "w") as f:
    f.write(ldo_params)

sys.add_comp("Vsys", comp=LinReg.from_file("LDO 1.8V", fname="linreg.toml"))

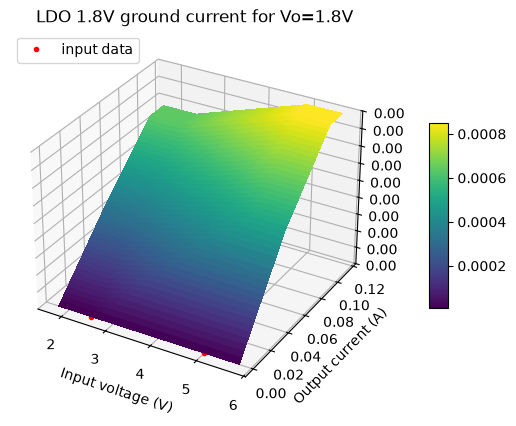

sys.plot_interp("LDO 1.8V", plot3d=True);

PSwitch

pswitch_params = """[pswitch]
rs = 0.1     # series resistance (Ohm), optional
iis = 1.0e-6 # sleep mode current (A), optional
rt = 0.0     # thermal resistance (°C/W), optional
#ig = 1.2e-6 # Ground current (optional)
# ground current (ig) can optionally be specified as 1D interpolation data:
#[pswitch.ig]
#vi = [5.0]
#io = [0.0, 0.05, 0.1]
#ig = [[2.0e-6, 0.5e-3, 0.85e-3]]
# or as 2D interpolation data:
[pswitch.ig]
vi = [2.5, 5.0]
io = [0.0, 0.05, 0.1]
ig = [[1.2e-6, 0.34e-3, 0.64e-3], [2.0e-6, 0.5e-3, 0.85e-3]]

[limits] # optional, any combination of below parameters can be specificed
vi = [ 2.7, 24.0]
vo = [ 0.0, 1000000.0]
vd = [ 0.3, 100.0]
ii = [ 0.0, 1000000.0]
io = [ 0.0, 0.25]
pi = [ 0.0, 1000000.0]
po = [ 0.0, 1000000.0]
pl = [ 0.0, 0.3]
tr = [ 0.0, 5.75]
tp = [-40.0, 85.0]
"""

with open("pswitch.toml", "w") as f:
    f.write(pswitch_params)

sys.add_comp("Vsys", comp=PSwitch.from_file("Load switch", fname="pswitch.toml"))

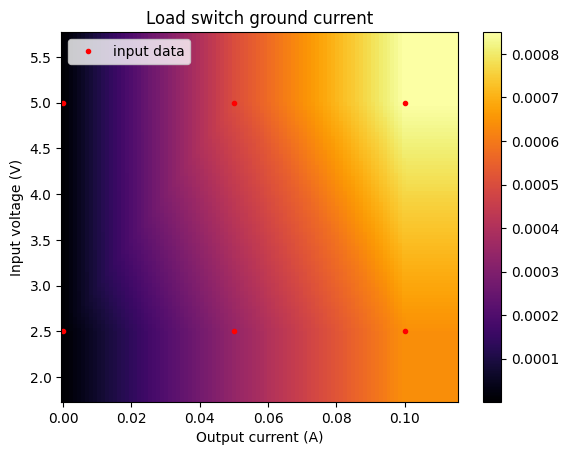

sys.plot_interp("Load switch", cmap="inferno");

RLoss

rloss_params = """[rloss]
rs = 7.5   # series resistance (Ohm), mandatory
rt = 40.0  # thermal resistance (°C/W), optional

[limits] # optional, any combination of below parameters can be specificed
vi = [ 0.0, 1000000.0]
vo = [ 0.0, 1000000.0]
vd = [ 0.0, 20.0]
ii = [ 0.0, 1000000.0]
io = [ 0.0, 1000000.0]
pi = [ 0.0, 10.0]
po = [ 0.0, 10.0]
pl = [ 0.0, 2.5]
tr = [ 0.0, 50.0]
tp = [-55.0, 55.0]
"""

with open("rloss.toml", "w") as f:
    f.write(rloss_params)

sys.add_comp("Load switch", comp=RLoss.from_file("Filter", fname="rloss.toml"))

VLoss

vloss_params = """[vloss]
#vdrop = 0.33 # voltage drop (V), mandatory
rt = 25.0     # thermal resistance (°C/W), optional
# voltage drop can optionally be specified as 1D interpolation data:
[vloss.vdrop]
vi = [3.3]
io = [0.1, 0.5, 0.9]
vdrop = [[0.23, 0.41, 0.477]]
# or as 2D interpolation data:
#[vloss.vdrop]
#vi = [3.3, 5.0, 12.0]
#io = [0.1, 0.5, 0.9]
#vdrop = [[0.23, 0.34, 0.477], [0.27, 0.39, 0.51], [0.3, 0.41, 0.57]]

[limits] # optional, any combination of below parameters can be specificed
vi = [ 0.0, 200.0]
vo = [ 0.0, 1000000.0]
vd = [ 0.0, 1000000.0]
ii = [ 0.0, 1000000.0]
io = [ 0.0, 0.75]
pi = [ 0.0, 1.0]
po = [ 0.0, 1.0]
pl = [ 0.0, 0.75]
tr = [ 0.0, 3.14]
tp = [-40.0, 65.0]
"""

with open("vloss.toml", "w") as f:
    f.write(vloss_params)

sys.add_comp("Buck 2.5V", comp=VLoss.from_file("Diode", fname="vloss.toml"))

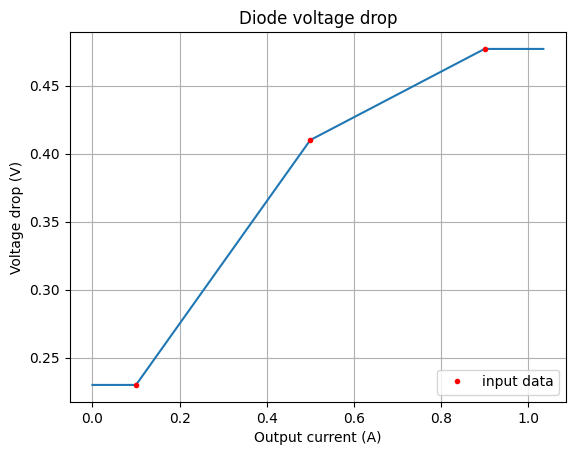

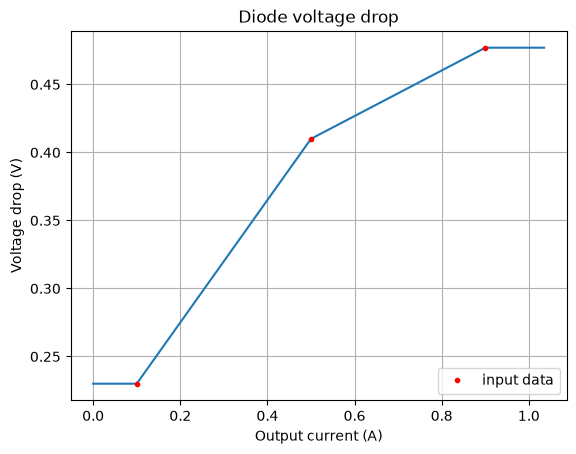

sys.plot_interp("Diode");

PLoad

pload_params = """[pload]
pwr = 0.5    # load power (W), mandatory
pwrs = 1e-3  # sleep mode load power (W), optional
rt = 15.0    # thermal resistance (°C/W), optional
loss = false # count load as a loss (bool)

[limits] # optional, any combination of below parameters can be specificed
vi = [ 0.0, 24.0]
ii = [ 0.0, 1.85]
tr = [ 0.0, 25.0]
tp = [-20.0, 75.0]
"""

with open("pload.toml", "w") as f:
    f.write(pload_params)

sys.add_comp("LDO 1.8V", comp=PLoad.from_file("MCU", fname="pload.toml"))

ILoad

iload_params = """[iload]
ii = 0.125   # load current (A), mandatory
iis = 1e-5   # sleep mode load current (A), optional
rt = 42.0    # thermal resistance (°C/W), optional
loss = false # count load as a loss (bool)

[limits] # optional, any combination of below parameters can be specificed
vi = [ 0.0, 24.0]
pi = [ 0.0, 1000000.0]
tr = [ 0.0, 35.0]
tp = [-40.0, 125.0]
"""

with open("iload.toml", "w") as f:
    f.write(iload_params)

sys.add_comp("Filter", comp=ILoad.from_file("Load", fname="iload.toml"))

RLoad

rload_params = """[rload]
rs = 12.0   # series resistance (Ohm), mandatory
rt = 5.0    # thermal resistance (°C/W), optional
loss = true # count load as a loss (bool)

[limits] # optional, any combination of below parameters can be specificed
vi = [ 0.0, 1000000.0]
ii = [ 0.0, 1.5]
pi = [ 0.0, 0.33]
tr = [ 0.0, 10.5]
tp = [-40.0, 105.0]
"""

with open("rload.toml", "w") as f:
    f.write(rload_params)

sys.add_comp("Diode", comp=RLoad.from_file("Resistor (loss)", fname="rload.toml"))

Summary

All component parameters can be loaded from .toml files.

sys.params()

	Component	Type	vo (V)	vdrop (V)	rs (Ohm)	rt (°C/W)	eff (%)	ig (A)	iq (A)	ii (A)	iis (A)	pwr (W)	pwrs (W)	loss
0	5V	SOURCE	5.0		0.0	0.0
1	M-bridge	RECTIFIER			0.012	0.0		interp	0.0
2	V5N	SOURCE	-5		0.007	0.0
3	D-bridge	RECTIFIER		interp		0.0
4	Pmux	PMUX			[0.33, 0.42, 0.15]	5.3		interp			0.000001
5	Load switch	PSWITCH			0.1	0.0		interp			0.000001
6	Filter	SLOSS			7.5	40.0
7	Load	LOAD				42.0				0.125	0.00001			False
8	LDO 1.8V	LINREG	1.8	0.25		20.0		interp			0.0
9	MCU	LOAD				15.0						0.5	0.001	False
10	Buck 2.5V	CONVERTER	2.5			25.0	interp		0.000001		0.0
11	Diode	SLOSS		interp		25.0
12	Resistor (loss)	LOAD			12.0	5.0								True

sys.limits()

	Component	Type	vi  (V)	vo  (V)	vd  (V)	ii  (A)	io  (A)	pi  (W)	po  (W)	pl  (W)	tr  (°C)	tp  (°C)
0	5V	SOURCE
1	M-bridge	RECTIFIER
2	V5N	SOURCE					[0.0, 1.0]
3	D-bridge	RECTIFIER
4	Pmux	PMUX	[0.0, 16.0]				[0.0, 2.0]					[0.0, 100.0]
5	Load switch	PSWITCH	[2.7, 24.0]		[0.3, 100.0]		[0.0, 0.25]			[0.0, 0.3]	[0.0, 5.75]	[-40.0, 85.0]
6	Filter	SLOSS			[0.0, 20.0]			[0.0, 10.0]	[0.0, 10.0]	[0.0, 2.5]	[0.0, 50.0]	[-55.0, 55.0]
7	Load	LOAD	[0.0, 24.0]								[0.0, 35.0]	[-40.0, 125.0]
8	LDO 1.8V	LINREG	[2.7, 24.0]		[0.3, 100.0]		[0.0, 0.25]			[0.0, 0.3]	[0.0, 5.75]	[-40.0, 85.0]
9	MCU	LOAD	[0.0, 24.0]			[0.0, 1.85]					[0.0, 25.0]	[-20.0, 75.0]
10	Buck 2.5V	CONVERTER	[2.7, 16.0]				[0.0, 1.0]			[0.0, 1.0]	[0.0, 12.5]	[-40.0, 125.0]
11	Diode	SLOSS	[0.0, 200.0]				[0.0, 0.75]	[0.0, 1.0]	[0.0, 1.0]	[0.0, 0.75]	[0.0, 3.14]	[-40.0, 65.0]
12	Resistor (loss)	LOAD				[0.0, 1.5]		[0.0, 0.33]			[0.0, 10.5]	[-40.0, 105.0]

# note: when the system contains a PMux, one tree for each source is shown
sys.tree()

Test toml
├── 5V
│   └── M-bridge
│       └── Pmux
│           ├── Load switch
│           │   └── Filter
│           │       └── Load
│           ├── LDO 1.8V
│           │   └── MCU
│           └── Buck 2.5V
│               └── Diode
│                   └── Resistor (loss)
└── V5N
    └── D-bridge
        └── Pmux
            ├── Load switch
            │   └── Filter
            │       └── Load
            ├── LDO 1.8V
            │   └── MCU
            └── Buck 2.5V
                └── Diode
                    └── Resistor (loss)

sys.solve()

	Component	Type	Rail in	Domain	Vin (V)	Vout (V)	Rail out	Iin (A)	Iout (A)	Power (W)	Loss (W)	Efficiency (%)	Temp. rise (°C)	Peak temp. (°C)	Warnings
0	5V	SOURCE		5V	5.0	5.0		0.0	0.0	0.0	0.0	100.0
1	M-bridge	RECTIFIER		5V	5.0	5.0		0.0	0.0	0.0	0.0	0.0	0.0	25.0
2	V5N	SOURCE		V5N	-5.0	-5.004251		0.607246	0.607246	3.036229	0.002581	99.914986
3	D-bridge	RECTIFIER		V5N	-5.004251	4.148323		0.607246	0.607246	3.038811	0.519758	82.895996	0.0	25.0
4	Pmux	PMUX		V5N	4.148323	3.947952	Vsys	0.607246	0.607187	2.519052	0.121907	95.160605	0.646106	25.646106
5	Load switch	PSWITCH	Vsys	V5N	3.947952	3.935452		0.125762	0.125	0.496501	0.004569	99.079696	0.0	25.0	vd
6	Filter	SLOSS		V5N	3.935452	2.99795		0.125	0.125	0.491932	0.117188	76.178086	4.6875	29.6875
7	Load	LOAD		V5N	2.99795	0.0		0.125	0.0	0.374744	0.0	100.0	15.739238	40.739238
8	LDO 1.8V	LINREG	Vsys	V5N	3.947952	1.8		0.278539	0.277778	1.09966	0.59966	45.468595	11.993202	36.993202	io pl tr
9	MCU	LOAD		V5N	1.8	0.0		0.277778	0.0	0.5	0.0	100.0	7.5	32.5
10	Buck 2.5V	CONVERTER	Vsys	V5N	3.947952	2.5		0.202886	0.185944	0.800984	0.336125	58.036027	8.40312	33.40312
11	Diode	SLOSS		V5N	2.5	2.231325		0.185944	0.185944	0.464859	0.049958	89.253012	1.24896	26.24896
12	Resistor (loss)	LOAD		V5N	2.231325	0.0		0.185944	0.0	0.0	0.414901	0.0	2.074505	27.074505
13	Subsystem 5V				5.0				0.0	0.0	0.0	100.0
14	Subsystem V5N				-5.0				0.607246	3.036229	2.166648	28.640178			Yes
15	System total									3.036229	2.166648	28.640178			Yes
